Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Les étiquettes:

low bed semi trailer,

semi lowbed trailer,

low bed tractor trailer

Produits recommandés

Vidéo

2 essieux 28 tonnes Lowbed Lowboy Truck Trailer Semi-remorque pour le transport de matériel lourd

Contactez-nous maintenant

Vidéo

3 essieux avant de la charge basse lit remorque avec hydraulique détachable col d'oie et ABS optionnel

Contactez-nous maintenant

Vidéo

Charge utile maximale de 120 tonnes Tri-essieux Heavy Duty Semi-remorque à basse altitude avec rampe et murs latéraux

Contactez-nous maintenant

Vidéo

3-Axle 13T Car Carrier Semi Trailer with 500mm Main Beam

Contactez-nous maintenant

Vidéo

Prix de la Lowbed Transporteur d'excavatrice Semi-remorque à plateau surbaissé avec rampe hydraulique Multi 3 4 5 essieux 40 60 80 120 100 tonnes à vendre

Contactez-nous maintenant

Vidéo

Two, Three, Four Axle Gooseneck Flatbed Semi Truck with Low Deck, Lowboy, Loader, or Low Bed Semi Trailer

Contactez-nous maintenant

Vidéo

Heavy-duty Customizable 3-Axis 60-120 Tons Foldable Construction Machinery Transportation Low-bed Trailer Trailer Truck

Contactez-nous maintenant

DéTAILS DES PRODUITS

Produits

Semi-remorque à basse altitude

semi-remorque de conteneur

Remorque de mur latéral semi

Semi-remorque pour véhicule de transport

Semi-remorque à déchargement/déplacement

Partie de véhicule à roues

Barrière Semi Trailer

Semi-remorque pour le transport des animaux

de bateau-citerne remorque semi

Trailers agricoles et autres trailers entiers

Le camion à ordures Howo

tête de tracteur

Trailer spécial

Pièces détachées de remorques

Nouveaux véhicules d'énergie

Véhicules spéciaux

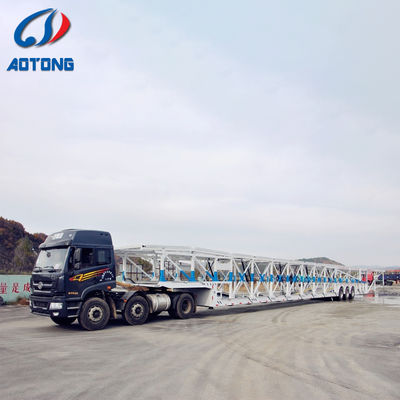

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS

Nombre De Pièces:	1 unité
Emballage Standard:	Norme d'exportation
Période De Livraison:	25 jours
Méthode De Paiement:	T / t

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine

Chine

Nom de marque

AOTONG

Certification

ISO,CCC

suspension:

Suspension mécanique ou aérienne

Spécifications des pneus:

12R22.5

Poutre principale:

Lourde je fais la poutre.

Épingle:

Type de boulon 2 '' / 3,5 ''

Système de freinage:

Chambre à air double, vanne de frein, réservoirs d'air 45L; ABS en option

Électrique:

Lumière LED, 7 façons, 24V

Peinture:

Spanting et propre rouille, 1 couche de peinture de premier ordre, 2 couches de peinture de finition

Quantité de commande min:

1 unité

Détails d'emballage:

Norme d'exportation

Délai de livraison:

25 jours

Conditions de paiement:

T / t

Mettre en évidence

2-axle car carrier trailer with ABS

lowbed semi trailer 18T-28T capacity

heavy duty car carrier trailer ABS

Description du produit

Main size
Overall length
15000mm

Overall width
2700mm

Overall height
3100mm

Loading capacity
Loading 8 units of cars.
Capacity of 25Tons.

Chassis
Main beam
Material of high strength steel T700.
Height 400mm.
Welded by automatic submerged-processes.

Main cross beam
Material is high strength steel T700.
Welded by automatic submerged-arc processes

Posts
Main posts
Material of high tensile steel T700.
5 pairs of each trailer

Side bars
Material is high strength steel T700.
Multi numbers installed.

Floor
Material
Manganese steel plate floor thickness of 3mm.
Multi holes designed.
Yellow and red painted track.

Landing gear
20T model landing gear, brand Yahua, with static capacity of 50T.
Single speed linked type, operated at one side.

King pin
2 inches size, installed on the kingpin plate.
JOST brand.

Axle
2 sets of 13T model axles.
Axle beam 1840mm.
Axle loading 13000kgs.

Tire
Tire sized 10R22.5, Double Star or Triangle brand.
4 sets of tires assembled with wheel rim per trailer.

Wheel rim
Sized 8.0-20, Zhengxing brand.
4 pcs of wheel rim per trailer.

Hydraulic
Cylinders
5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars.
Youggu brand.

First unit
At the front post, out&back, extend 600mm.

Second unit
At the end post of gooseneck, out&back, extend 600mm.

Third unit
Under the aircraft style plate, to lift single car, out&back, extend 900mm.

Forth unit
At the post in front of tire, out&back, extend 900mm.

Fifth unit
At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.

Suspension
Mechanical steel suspension system, double axles type.
4 sets of leaf springs installed.

Brake sysem
Dual line air drum brake system with T30/30 type double brake chambers on each axle.

Light system
12v/24v light system.
LED lights, including side, rear, turning.

ABS system
ABS system installed, HN or Kemi brand.

Others
Color optional.
One set of standard tools in tool box.
One bag of belts for firming the cars.

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 0

2-Axle Car Carrier Trailer 18T-28T Capacity with ABS 1

Les étiquettes:

Main size	Overall length	15000mm
	Overall width	2700mm
	Overall height	3100mm
	Loading capacity	Loading 8 units of cars. Capacity of 25Tons.
Chassis	Main beam	Material of high strength steel T700. Height 400mm. Welded by automatic submerged-processes.
Chassis	Main cross beam	Material is high strength steel T700. Welded by automatic submerged-arc processes
Posts	Main posts	Material of high tensile steel T700. 5 pairs of each trailer
Posts	Side bars	Material is high strength steel T700. Multi numbers installed.
Floor	Material	Manganese steel plate floor thickness of 3mm. Multi holes designed. Yellow and red painted track.
Landing gear	20T model landing gear, brand Yahua, with static capacity of 50T. Single speed linked type, operated at one side.
King pin	2 inches size, installed on the kingpin plate. JOST brand.
Axle	2 sets of 13T model axles. Axle beam 1840mm. Axle loading 13000kgs.
Tire	Tire sized 10R22.5, Double Star or Triangle brand. 4 sets of tires assembled with wheel rim per trailer.
Wheel rim	Sized 8.0-20, Zhengxing brand. 4 pcs of wheel rim per trailer.
Hydraulic Cylinders	5 units (2 sets of each unit) of hydraulic cylinders installed, to lift the second floor and cars. Youggu brand.
	First unit	At the front post, out&back, extend 600mm.
	Second unit	At the end post of gooseneck, out&back, extend 600mm.
	Third unit	Under the aircraft style plate, to lift single car, out&back, extend 900mm.
	Forth unit	At the post in front of tire, out&back, extend 900mm.
	Fifth unit	At the end post of trailer, only out, back by the cars' gravity, extend 1600mm.
Suspension	Mechanical steel suspension system, double axles type. 4 sets of leaf springs installed.
Brake sysem	Dual line air drum brake system with T30/30 type double brake chambers on each axle.
Light system	12v/24v light system. LED lights, including side, rear, turning.
ABS system	ABS system installed, HN or Kemi brand.
Others	Color optional. One set of standard tools in tool box. One bag of belts for firming the cars.
